New and Returning Customers
The New and Returning Customers pattern dynamically calculates the number of customers with certain behaviors based on their purchase history. This calculation can be computing-intensive and, thus, a critical part of the pattern is an efficient implementation.
Basic Pattern Example
Suppose you have a Sales table containing one row for each row detail in an order, as shown in Figure 1.
The OrderDateKey and CustomerKey columns reference the Date and Customer tables, respectively. The pattern assumes that there is one row per customer. If the Customer table contains more than one row for the same customer (such as in a Slowly Changing Dimension, where there is one row for each version of the same customer), then the application key that uniquely identifies the customer should be copied (denormalized) in the Sales table.
You create the New Customers measure to count how many customers have never bought a product before, considering the past sales of only the current selection of products.
[New Customers] := COUNTROWS ( FILTER ( ADDCOLUMNS ( VALUES ( Sales[CustomerKey] ), "PreviousSales", CALCULATE ( COUNTROWS ( Sales ), FILTER ( ALL ( 'Date' ), 'Date'[FullDate] < MIN ( 'Date'[FullDate] ) ) ) ), [PreviousSales] = 0 ) )

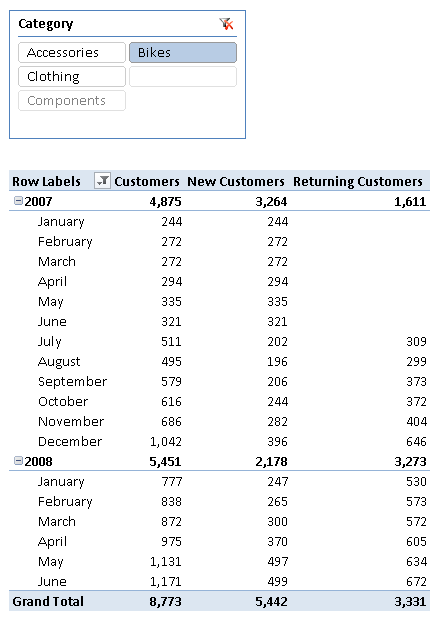

In Figure 2 you can see the result of the New Customers measure: because the slicer is filtering only the Bikes category, the pivot table displays how many customers bought a bike for the first time in each month.
The Customers measure is simply a distinct count.
[Customers] := DISTINCTCOUNT ( Sales[CustomerKey] )
The Returning Customers measure counts how many customers made at least one purchase in the past and made another purchase in the current period.
[Returning Customers] := COUNTROWS ( CALCULATETABLE ( VALUES ( Sales[CustomerKey] ), VALUES ( Sales[CustomerKey] ), FILTER ( ALL ( 'Date' ), 'Date'[FullDate] < MIN ( 'Date'[FullDate] ) ) ) )
You can also calculate the number of new customers by using the difference between the Customers and Returning Customers measures. This can be a good approach for simple formulas, but the technique used in this example is useful for implementing complex calculations, such as Lost Customers and Recovered Customers, as described in the complete pattern.
Use Cases
The New and Returning Customers pattern is useful in scenarios where you analyze customers’ behavior and loyalty based on recurring purchasing behaviors. The following is a list of some interesting use cases.
Customer Retention
A company that uses customer retention strategies should analyze the results of its efforts by evaluating the behavior of its existing customer base. The New and Returning Customers pattern includes measures that enable such analysis, such as calculating the number of lost and returning customers. You can also analyze the results of actions targeted to lost customers by using the Recovered Customers measure.
Customer Attrition
If a company does not have a subscription model, identifying a lost customer requires the definition of a period of time within which the customer should make a purchase to be considered an active customer. Identifying lost customers is a key to analyzing customer attrition, customer churn, customer turnover, and customer defection.
Churning
To evaluate the churn rate of a customer base, you can use the New and Returning Customers pattern to obtain the number of new, lost, returning, and recovered customers.
Customer Loyalty
You can analyze customer loyalty by using several measures of the New and Returning Customers pattern, such as Returning Customers and Lost Customers. Usually you evaluate these measures against the total number of customers, comparing the resulting ratio over time.
Complete Pattern
The complete pattern includes many different measures. Examples of implementation of all the measures are shown after the definitions and the data model below.
Definition of Measures
The measures used in the pattern are defined as follows:
- New Customers: customers who have never purchased any of the selected products.
- Returning Customers: customers who bought at least one of the selected products in the past (no matter when).
- Lost Customers: customers who bought any of the selected products in the past but did not buy in the last period (defined as a number of days/months/years).
- Recovered Customers: customers who were considered lost before the defined period (like Lost Customers) but made a purchase in the period.
For each measure, there is also an “absolute” version that ignores the current product selection for past purchases:
- Absolute New Customers: customers who have never purchased before, regardless of the product selection.
- Absolute Returning Customers: customers who bought any product at any time in the past.
- Absolute Lost Customers: like Lost Customers, but considering any purchase made in the past, regardless of the current selection of products.
- Absolute Recovered Customers: customers who were considered lost before the defined period, regardless of the current selection of products (like Absolute Lost Customers), but made a purchase in the period.
Data Model

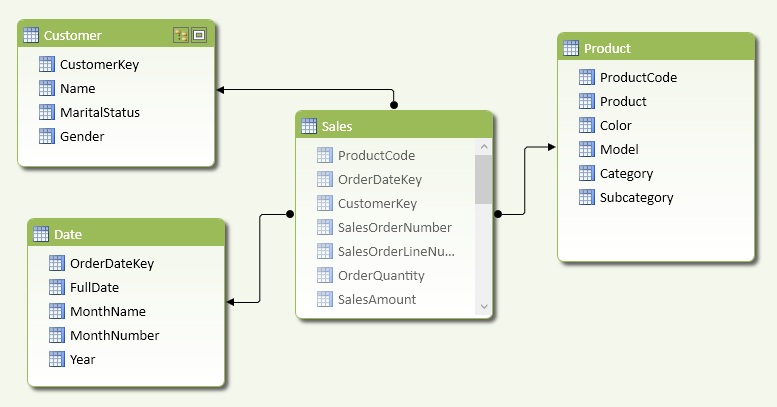

You need a data model similar to the one shown in Figure 3, with a Sales table that has a column containing a unique value for each customer (CustomerKey). If one customer has many keys (such as in a Slowly Changing Dimension Type 2, where every entity keeps the history of a changing attribute, storing one row for every version), you should denormalize the application key in the Sales table. The reason to do that is performance; you can avoid this denormalization by using a DAX calculation in the measure, but it would slow down query response time.

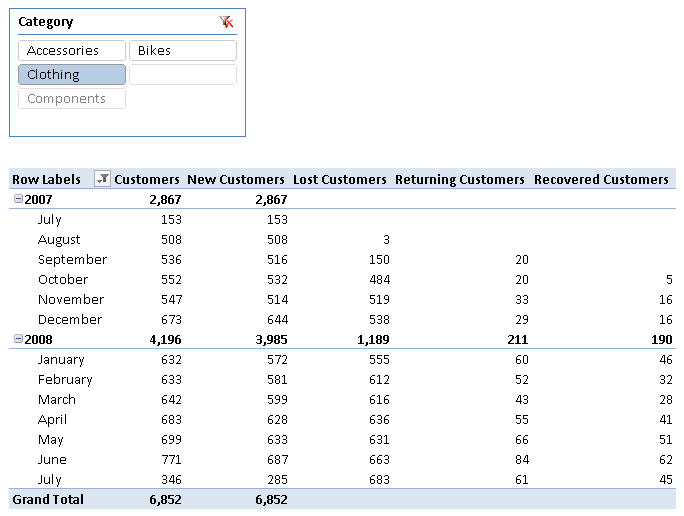

The pivot table in Figure 4 shows the relative measures of this pattern in the columns and the different periods in the rows.

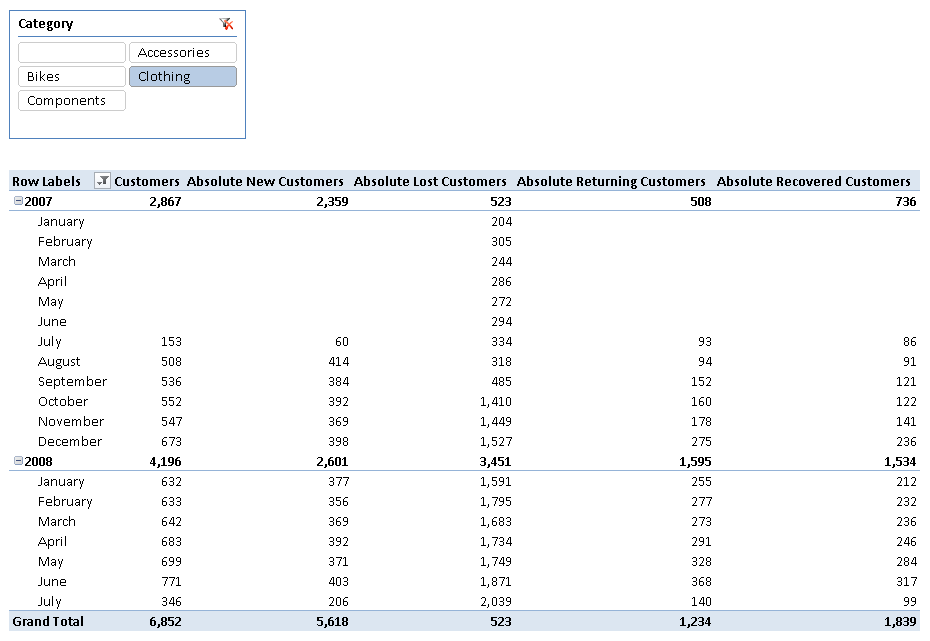

The pivot table in Figure 5 shows the corresponding absolute measures of this pattern.
Templates of Measures
In the templates below, you will find the following markers:
- <fact_table> is the table that contains the sales transactions.
- <product_table> is the table that contains the products.
- <customer_key_column> is a column in the fact table that contains a unique identifier for the customer (it is also called business key or application key).
- <date_column> is a column in the date table or (if you do not have a date table in the data model) the fact table that identifies the date of the sales transaction.
- <date_table> is the date table – if you do not have a date table in the data model, replace it with the column in the fact table that identifies the date of the sales transaction (<date_column>).
- <fact_date_column> is a column in the fact table that identifies the date of the sales transaction; its data type has to be datetime. If an external date table uses a different data type to establish the relationship with the fact table, the corresponding date has to be denormalized in the fact table to simplify this calculation.
- <days_lost_customer> is the number of days after the last purchase to consider a customer lost.
There are two groups of templates:
- Relative measures: consider past transactions of selected products only.
- Absolute measures: consider past transactions of all the products, regardless of the current selection.
Relative Measures for New / Lost / Recovered / Returning Customers
Relative template measures define the state of a customer (new / lost / recovered / returning) considering only the products in the current selection and ignoring any transaction by the same customer with other products.
You can calculate the number of new customers as a difference between the customers in the current period and the returning customers.
[New Customers] := DISTINCTCOUNT ( <customer_key_column> ) - [Returning Customers]
An alternative way to implement the same measure of new customers is by counting how many customers had no sales before the period selected.
[New Customers] := COUNTROWS ( FILTER ( ADDCOLUMNS ( VALUES ( <customer_key_column> ), "PreviousSales", CALCULATE ( COUNTROWS ( <fact_table> ), FILTER ( ALL ( <date_table> ), <date_column> < MIN ( <date_column> ) ) ) ), ISBLANK ( [PreviousSales] ) ) )
The former version of New Customers (subtraction between distinct count of customers and returning customers) is usually faster. However, it is a good idea to test the performance of both approaches depending on the distribution of data in the data model and the type of queries used, and then to choose the implementation that is faster on a case-by-case basis.
You can evaluate the number of returning customers by using a technique that manipulates the filter context. The following measure combines two filters (the dates before the period selected, and the customers in the period selected) to count returning customers.
[Returning Customers] := COUNTROWS ( CALCULATETABLE ( VALUES ( <customer_key_column> ), VALUES ( <customer_key_column> ), FILTER ( ALL ( <date_table> ), <date_column> < MIN ( <date_column> ) ) ) )
Note Remember that the first argument of the CALCULATE or CALCULATETABLE function is the expression that will be evaluated in a filter context modified by the filter arguments. Passing VALUES (
) as a filter argument will keep the customers of the selected period in the filter context, once the filter over a different set of dates is applied. A possible bottleneck of the Returning Customers measure is that it applies a filter by date: if you are evaluating returning customers by month or year in a pivot table, the formula engine scans a materialized table including date and customer key. You might improve performance and reduce memory pressure by applying a filter over a month or year column instead of operating at the date level, possibly by denormalizing such a column in the fact table.
You can determine the number of lost customers by using the following calculation. The internal CustomerLostDate column sums the number of days since the last purchase of each customer, which defines when a customer is lost (the
[LostDaysLimit] := <days_lost_customer> + 1
[Lost Customers] := COUNTROWS ( FILTER ( ADDCOLUMNS ( FILTER ( CALCULATETABLE ( ADDCOLUMNS ( VALUES ( <customer_key_column> ), "CustomerLostDate", CALCULATE ( MAX ( <fact_date_column> ) ) + [LostDaysLimit] ), FILTER ( ALL ( <date_table> ), AND ( <date_column> < MIN ( <date_column> ), <date_column> >= MIN ( <date_column> ) - [LostDaysLimit] ) ) ), AND ( AND ( [CustomerLostDate] >= MIN ( <date_column> ), [CustomerLostDate] <= MAX ( <date_column> ) ), [CustomerLostDate] <= CALCULATE ( MAX ( <fact_date_column> ), ALL ( <fact_table> ) ) ) ), "FirstBuyInPeriod", CALCULATE ( MIN ( <fact_date_column> ) ) ), OR ( ISBLANK ( [FirstBuyInPeriod] ), [FirstBuyInPeriod] > [CustomerLostDate] ) ) )
You can obtain the number of recovered customers with a calculation that compares, for each customer in the current selection, the date of the last purchase before the period selected against the first date of purchases in the current period.
Note The formula engine performs an important part of the calculation, so the DAX expression performs the most selective test in inner FILTER functions in order to minimize the occurrences of the least selective comparisons, improving performance when the number of recovered customers is high.
[Recovered Customers] := COUNTROWS ( FILTER ( ADDCOLUMNS ( FILTER ( FILTER ( ADDCOLUMNS ( VALUES ( <customer_key_column> ), "CustomerLostDate", CALCULATE ( MAX ( <fact_date_column> ), FILTER ( ALL ( <date_table> ), <date_column> < MIN ( <fact_date_column> ) ) ) ), NOT ( ISBLANK ( [CustomerLostDate] ) ) ), ( [CustomerLostDate] + [LostDaysLimit] ) < MAX ( <fact_date_column> ) ), "FirstBuyInPeriod", CALCULATE ( MIN ( <fact_date_column> ) ) ), [FirstBuyInPeriod] > ( [CustomerLostDate] + [LostDaysLimit] ) ) )
Absolute Measures for New / Lost / Recovered / Returning Customers
Absolute template measures define the state of a customer (new / lost / recovered / returning) considering all the purchases ever made by the same customer.
You can calculate the number of absolute new customers by counting how many customers had no transactions for any product before the period selected. In this case, you cannot use the difference between the customers in the current period and the returning customers.
[Absolute New Customers] := COUNTROWS ( FILTER ( ADDCOLUMNS ( VALUES ( <customer_key_column> ), "PreviousSales", CALCULATE ( COUNTROWS ( <fact_table> ), ALL ( <product_table> ), FILTER ( ALL ( <date_table> ), <date_column> < MIN ( <date_column> ) ) ) ), ISBLANK ( [PreviousSales] ) ) )
Important Note that the only difference between measures of new customers and absolute new customers is an additional filter argument, which is highlighted in the formula. If there are other attributes that you want to ignore for past transactions made by the same customer, you just include other ALL conditions on that table(s) in the filter arguments of the CALCULATE statement, removing filters on table/columns you want to ignore.
You can evaluate the number of absolute returning customers by adding ALL conditions in filter arguments of the Absolute Returning Customers measure, specifying the table/columns you do not want to filter in past transactions.
[Absolute Returning Customers] := COUNTROWS ( CALCULATETABLE ( VALUES ( <customer_key_column> ), VALUES ( <customer_key_column> ), ALL ( <product_table> ), FILTER ( ALL ( <date_table> ), <date_column> < MIN ( <date_column> ) ) ) )
To calculate the number of absolute lost customers, you add ALL conditions (for tables/attributes you want to ignore in past transactions) in two CALCULATETABLE and CALCULATE filter arguments of the original Lost Customers expression. Look at the explanation of the Lost Customers measure for more details about its behavior.
[LostDaysLimit] := <days_lost_customer> + 1
[Absolute Lost Customers] := COUNTROWS ( FILTER ( ADDCOLUMNS ( FILTER ( CALCULATETABLE ( ADDCOLUMNS ( VALUES ( <customer_key_column> ), "CustomerLostDate", CALCULATE ( MAX ( <fact_date_column> ) ) + [LostDaysLimit] ), ALL ( <product_table> ), FILTER ( ALL ( <date_table> ), AND ( <date_column> < MIN ( <date_column> ), <date_column> >= MIN ( <date_column> ) - [LostDaysLimit] ) ) ), AND ( AND ( [CustomerLostDate] >= MIN ( <date_column> ), [CustomerLostDate] <= MAX ( <date_column> ) ), [CustomerLostDate] <= CALCULATE ( MAX ( <fact_date_column> ), ALL ( <fact_table> ) ) ) ), "FirstBuyInPeriod", CALCULATE ( MIN ( <fact_date_column> ), ALL ( <product_table> ) ) ), OR ( ISBLANK ( [FirstBuyInPeriod] ), [FirstBuyInPeriod] > [CustomerLostDate] ) ) )
Finally, you can count the number of absolute recovered customers (using the Absolute Recovered Customers measure) by adding ALL conditions (for tables/attributes to ignore in past transactions) in the filter argument of the only CALCULATE function included in the original Recovered Customers measure.
[Absolute Recovered Customers] := COUNTROWS ( FILTER ( ADDCOLUMNS ( FILTER ( FILTER ( ADDCOLUMNS ( VALUES ( <customer_key_column> ), "CustomerLostDate", CALCULATE ( MAX ( <fact_date_column> ), ALL ( <product_table> ), FILTER ( ALL ( <fact_date_column> ), <fact_date_column> < MIN ( <fact_date_column> ) ) ) ), NOT ( ISBLANK ( [CustomerLostDate] ) ) ), ( [CustomerLostDate] + [LostDaysLimit] ) < MAX ( <fact_date_column> ) ), "FirstBuyInPeriod", CALCULATE ( MIN ( <fact_date_column> ) ) ), [FirstBuyInPeriod] > ( [CustomerLostDate] + [LostDaysLimit] ) ) )
Measures Implemented in Adventure Works
You can implement the measures of the New and Returning Customers pattern for the sample model based on Adventure Works after you create a column of Date data type (OrderDate) in the Sales table by using the following definition.
Sales[OrderDate] = RELATED ( 'Date'[FullDate] )
You can implement the measures of this pattern as follows.
[New Customers] := DISTINCTCOUNT ( Sales[CustomerKey] ) - [Returning Customers]
[Returning Customers] := COUNTROWS ( CALCULATETABLE ( VALUES ( Sales[CustomerKey] ), VALUES ( Sales[CustomerKey] ), FILTER ( ALL ( 'Date' ), 'Date'[FullDate] < MIN ( 'Date'[FullDate] ) ) ) )
[Lost Customers] := IF ( NOT ( MIN ( 'Date'[FullDate] ) > CALCULATE ( MAX ( Sales[OrderDate] ), ALL ( Sales ) ) ), COUNTROWS ( FILTER ( ADDCOLUMNS ( FILTER ( CALCULATETABLE ( ADDCOLUMNS ( VALUES ( Sales[CustomerKey] ), "CustomerLostDate", CALCULATE ( MAX ( Sales[OrderDate] ) ) + [LostDaysLimit] ), FILTER ( ALL ( 'Date' ), AND ( 'Date'[FullDate] < MIN ( 'Date'[FullDate] ), 'Date'[FullDate] >= MIN ( 'Date'[FullDate] ) - [LostDaysLimit] ) ) ), AND ( AND ( [CustomerLostDate] >= MIN ( 'Date'[FullDate] ), [CustomerLostDate] <= MAX ( 'Date'[FullDate] ) ), [CustomerLostDate] <= CALCULATE ( MAX ( Sales[OrderDate] ), ALL ( Sales ) ) ) ), "FirstBuyInPeriod", CALCULATE ( MIN ( Sales[OrderDate] ) ) ), OR ( ISBLANK ( [FirstBuyInPeriod] ), [FirstBuyInPeriod] > [CustomerLostDate] ) ) ) )
[Recovered Customers] := COUNTROWS ( FILTER ( ADDCOLUMNS ( FILTER ( FILTER ( ADDCOLUMNS ( VALUES ( Sales[CustomerKey] ), "CustomerLostDate", CALCULATE ( MAX ( Sales[OrderDate] ), FILTER ( ALL ( 'Date' ), 'Date'[FullDate] < MIN ( Sales[OrderDate] ) ) ) ), NOT ( ISBLANK ( [CustomerLostDate] ) ) ), ( [CustomerLostDate] + [LostDaysLimit] ) < MAX ( Sales[OrderDate] ) ), "FirstBuyInPeriod", CALCULATE ( MIN ( Sales[OrderDate] ) ) ), [FirstBuyInPeriod] > ( [CustomerLostDate] + [LostDaysLimit] ) ) )
[Absolute New Customers] := COUNTROWS ( FILTER ( ADDCOLUMNS ( VALUES ( Sales[CustomerKey] ), "PreviousSales", CALCULATE ( COUNTROWS ( Sales ), ALL ( Product ), FILTER ( ALL ( 'Date' ), 'Date'[FullDate] < MIN ( 'Date'[FullDate] ) ) ) ), ISBLANK ( [PreviousSales] ) ) )
[Absolute Returning Customers] := COUNTROWS ( CALCULATETABLE ( VALUES ( Sales[CustomerKey] ), VALUES ( Sales[CustomerKey] ), ALL ( Product ), FILTER ( ALL ( 'Date' ), 'Date'[FullDate] < MIN ( 'Date'[FullDate] ) ) ) )
[Absolute Lost Customers] := IF ( NOT ( MIN ( 'Date'[FullDate] ) > CALCULATE ( MAX ( Sales[OrderDate] ), ALL ( Sales ) ) ), COUNTROWS ( FILTER ( ADDCOLUMNS ( FILTER ( CALCULATETABLE ( ADDCOLUMNS ( VALUES ( Sales[CustomerKey] ), "CustomerLostDate", CALCULATE ( MAX ( Sales[OrderDate] ) ) + [LostDaysLimit] ), ALL ( Product ), FILTER ( ALL ( 'Date' ), AND ( 'Date'[FullDate] < MIN ( 'Date'[FullDate] ), 'Date'[FullDate] >= MIN ( 'Date'[FullDate] ) - [LostDaysLimit] ) ) ), AND ( AND ( [CustomerLostDate] >= MIN ( 'Date'[FullDate] ), [CustomerLostDate] <= MAX ( 'Date'[FullDate] ) ), [CustomerLostDate] <= CALCULATE ( MAX ( Sales[OrderDate] ), ALL ( Sales ) ) ) ), "FirstBuyInPeriod", CALCULATE ( MIN ( Sales[OrderDate] ), ALL ( Product ) ) ), OR ( ISBLANK ( [FirstBuyInPeriod] ), [FirstBuyInPeriod] > [CustomerLostDate] ) ) ) )
[Absolute Recovered Customers]:= COUNTROWS ( FILTER ( ADDCOLUMNS ( FILTER ( FILTER ( ADDCOLUMNS ( VALUES ( Sales[CustomerKey] ), "CustomerLostDate", CALCULATE ( MAX ( Sales[OrderDate] ), ALL ( Product ), FILTER ( ALL ( 'Date' ), 'Date'[FullDate] < MIN ( Sales[OrderDate] ) ) ) ), NOT ( ISBLANK ( [CustomerLostDate] ) ) ), ( [CustomerLostDate] + [LostDaysLimit] ) < MAX ( Sales[OrderDate] ) ), "FirstBuyInPeriod", CALCULATE ( MIN ( Sales[OrderDate] ) ) ), [FirstBuyInPeriod] > ( [CustomerLostDate] + [LostDaysLimit] ) ) )
The only purpose of the initial IF statement in the measures for lost customers is to avoid evaluation for dates higher than the last date available in Sales, because the Date table contains more years than available data and a complete evaluation of lost customers for future dates would be useless and expensive.
More Pattern Examples
In this section, you will see a few examples of the New and Returning Customers pattern.
Customer Loyalty with Different Intervals Between Sales
Using a slicer, you can control the LostDaysLimit measure, which controls the evaluation of lost and recovered customers. This enables quick changes of the evaluation, trying different intervals between two sales to consider a customer as loyal. Figure 6 shows an example of the results obtained by defining a table (Days) containing a single column (Days Customer Lost) that is used to display the values in the slicer. The minimum value selected is the maximum distance between two sales before the customer is considered lost.
[DaysCustomerLost] := MIN ( Days[Days Customer Lost] )
[LostDaysLimit] := [DaysCustomerLost] + 1

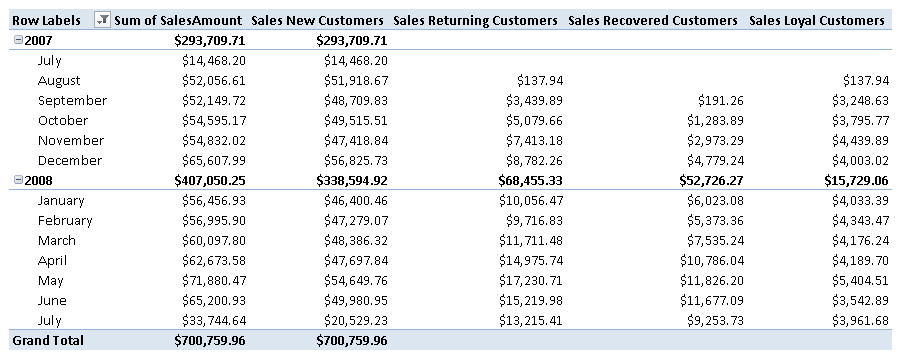

Sales Amounts of New, Returning, and Recovered Customers
You might want to filter a measure by considering only the new, returning, or recovered customers. For example, a pivot table could display the Sales Amount of different types of customers, as shown in Figure 7.
You define the measure using a slight variation of the original pattern. Instead of counting the rows returned by a table expression that filters the customers, you use the list of customers as a filter argument in a CALCULATE expression that evaluates the measure you want.
[Sales New Customers] := CALCULATE ( SUM ( Sales[SalesAmount] ), FILTER ( ADDCOLUMNS ( VALUES ( Sales[CustomerKey] ), "PreviousSales", CALCULATE ( COUNTROWS ( Sales ), FILTER ( ALL ( 'Date' ), 'Date'[FullDate] < MIN ( 'Date'[FullDate] ) ) ) ), ISBLANK ( [PreviousSales] ) ) )
[Sales Returning Customers] := CALCULATE ( SUM ( Sales[SalesAmount] ), CALCULATETABLE ( VALUES ( Sales[CustomerKey] ), VALUES ( Sales[CustomerKey] ), FILTER ( ALL ( 'Date' ), 'Date'[FullDate] < MIN ( 'Date'[FullDate] ) ) ) )
[Sales Recovered Customers] := CALCULATE ( SUM ( Sales[SalesAmount] ), FILTER ( ADDCOLUMNS ( FILTER ( FILTER ( ADDCOLUMNS ( VALUES ( Sales[CustomerKey] ), "CustomerLostDate", CALCULATE ( MAX ( Sales[OrderDate] ), FILTER ( ALL ( 'Date' ), 'Date'[FullDate] < MIN ( Sales[OrderDate] ) ) ) ), NOT ( ISBLANK ( [CustomerLostDate] ) ) ), ( [CustomerLostDate] + [LostDaysLimit] ) < MAX ( Sales[OrderDate] ) ), "FirstBuyInPeriod", CALCULATE ( MIN ( Sales[OrderDate] ) ) ), [FirstBuyInPeriod] > ( [CustomerLostDate] + [LostDaysLimit] ) ) )
[Sales Loyal Customers] := CALCULATE ( SUM ( Sales[SalesAmount] ), FILTER ( ADDCOLUMNS ( FILTER ( FILTER ( ADDCOLUMNS ( VALUES ( Sales[CustomerKey] ), "CustomerLostDate", CALCULATE ( MAX ( Sales[OrderDate] ), FILTER ( ALL ( 'Date' ), 'Date'[FullDate] < MIN ( Sales[OrderDate] ) ) ) ), NOT ( ISBLANK ( [CustomerLostDate] ) ) ), ( [CustomerLostDate] + [LostDaysLimit] ) >= MIN ( Sales[OrderDate] ) ), "FirstBuyInPeriod", CALCULATE ( MIN ( Sales[OrderDate] ) ) ), [FirstBuyInPeriod] <= ( [CustomerLostDate] + [LostDaysLimit] ) ) )
Evaluates an expression in a context modified by filters.
CALCULATE ( <Expression> [, <Filter> [, <Filter> [, … ] ] ] )
Evaluates a table expression in a context modified by filters.
CALCULATETABLE ( <Table> [, <Filter> [, <Filter> [, … ] ] ] )
When a column name is given, returns a single-column table of unique values. When a table name is given, returns a table with the same columns and all the rows of the table (including duplicates) with the additional blank row caused by an invalid relationship if present.
VALUES ( <TableNameOrColumnName> )
Returns a table that has been filtered.
FILTER ( <Table>, <FilterExpression> )
Returns all the rows in a table, or all the values in a column, ignoring any filters that might have been applied.
ALL ( [<TableNameOrColumnName>] [, <ColumnName> [, <ColumnName> [, … ] ] ] )
Checks whether a condition is met, and returns one value if TRUE, and another value if FALSE.
IF ( <LogicalTest>, <ResultIfTrue> [, <ResultIfFalse>] )
This pattern is designed for Excel 2010-2013. An alternative version for Power BI / Excel 2016-2019 is also available.
This pattern is included in the book DAX Patterns 2015.
Downloads
Download the sample files for Excel 2010-2013:
